TPS7A1601DGNR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS7A1601DGNR
Datasheet:
Description:

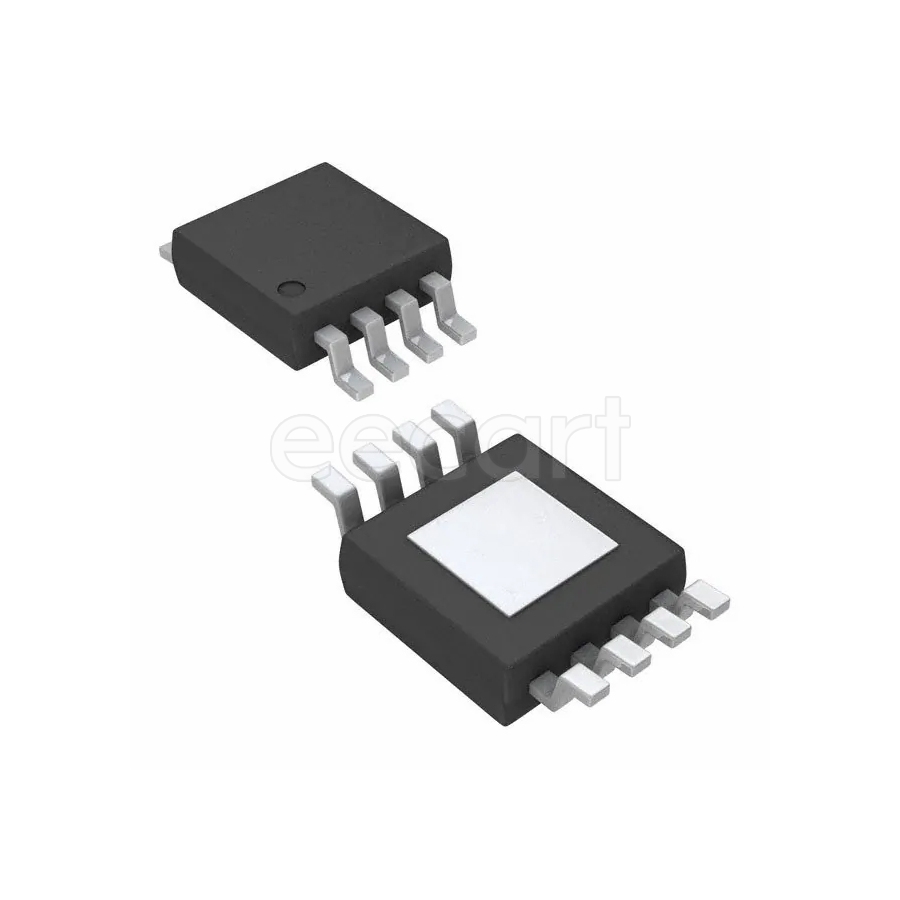

Voltage Regulators - Linear MSOP-8 EP SMD/SMT Positive Adjustable 18.5 V 100 mA
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.1 mm |
| Thickness | 1.02 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Dropout Voltage | 60 mV |
| Min Input Voltage | 3 V |
| Output Current | 100 mA |
| Output Voltage | 18.5 V |
| Output Type | Adjustable |
| Lifecycle Status | Active |
| Accuracy | 2 % |
| Max Output Current | 100 mA |
| Quiescent Current | 4 µA |
| Max Input Voltage | 60 V |
| Number of Outputs | 1 |
| Min Output Voltage | 1.2 V |
| Min Current Limit | 101 mA |
| Max Output Voltage | 18.5 V |
| Reference Voltage | 1.217 V |
| Number of Regulators | 1 |
| Output Voltage Accuracy | 2 % |
| Load Regulation | 1 % |
| RoHS | Compliant |
| Polarity | Positive |
| Packaging | Reel |
Stock: 4313
Distributors
pcbx
pcbxUnit Price$2.30917
Ext.Price$2.30917
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.30917 | $2.30917 |
| 10 | $1.73380 | $17.33800 |
| 25 | $1.58931 | $39.73275 |
| 50 | $1.50906 | $75.45300 |
| 100 | $1.43286 | $143.28600 |
| 300 | $1.37216 | $411.64800 |
| 500 | $1.31403 | $657.01500 |
| 1000 | $1.27641 | $1276.41000 |
| 3000 | $1.24482 | $3734.46000 |
| 5000 | $1.21400 | $6070.00000 |
